BABY REVERSO MODEL


APPEARANCE AND QUALITY for outdoor use

The Baby Reverso aluminium roller shutters meet the need for outward winding, aesthetically pleasing roller shutters. They have the same features as the Baby model (minimum profile dimensions) but with a concave profile. They have a slightly curved section and a reduced pitch.


Profile dimensions:
10x40mm
Weight / sq.m.:
8,5 Kg
Winding:
Outward
Recommended maximum width:
2,00 ml
Security systems:
token lock or Systemblock

SPACE REQUIREMENTS ON A Ø60 ROLL

h100130160190220250280310340
Ø161718202122232425

COLOUR CHART




NORMA

Normal use, for mounting on false door frames or fastening on the inside of the casing.

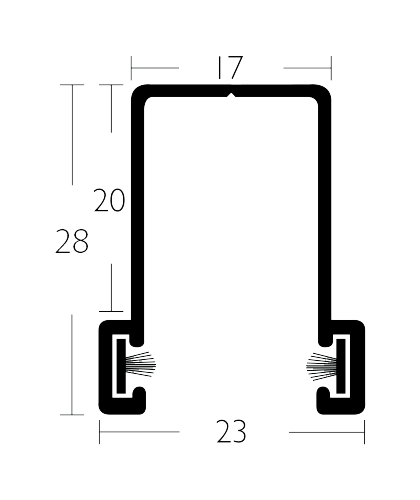

ROSSI

For replacement
